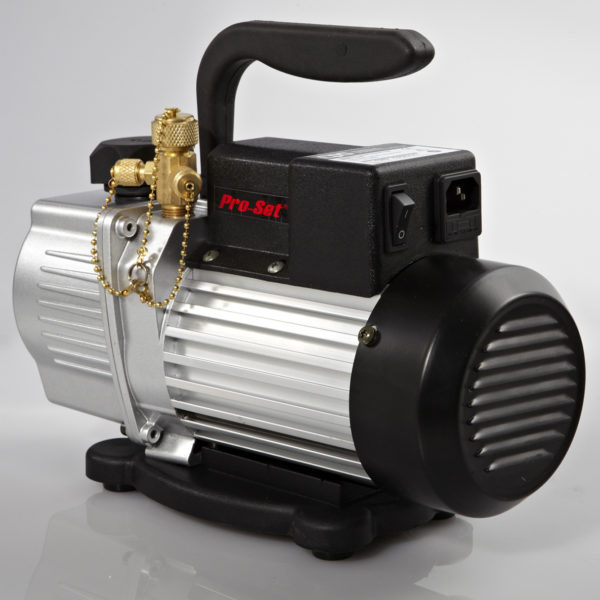

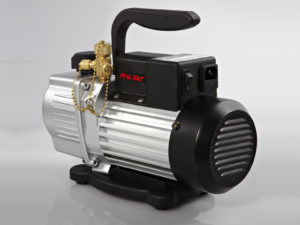

VP2DE – Pro-Set® 2 CFM Vacuum Pump

279,53

The VP2DE Pro-Set® Premium Series vacuum pump is a 2 CFM, single-stage unit with a versatile dual voltage 1 / 3 HP motor. The VP2DE unit boasts the same high quality, high value features engineered into all of our Pro-Set® vacuum pumps providing performance excellence and years of reliable service.

VP2DE Key Features:

  • Dual voltage operation 220 / 240V 50 / 60Hz
  • Exceptional ultimate vacuum rating as low as 10 microns
  • Advanced air cooled motor design for operation in high ambient temperatures
  • Proprietary oil mist free exhaust port cap for clean, safe job environment
  • Gas ballast valve speeds achievement of deep vacuum
  • Multiple port connections for 1 / 4″, 3 / 8″ SAE and 1 / 2″ ACME
  • Easy maintenance with large oil sight glass and fill port with easily accessible oil drain port
  • Solid rubber base provides extreme shock resistance
  • Sure-grip handle ergonomically designed for superior comfort and portability
  • Proprietary spring-activated polymer-based exhaust valve enables a 99.999% seal on the discharge port of the vacuum pump mechanism
  • Improved materials selection including hardness and additives, reduces wear and prevents gallings
  • Improved internal oiling system design extends life and improves vacuum performance

Download manual

Download Declaration of Conformity

Categories: , , Brand:

Description

Specifications:

Power: 220 / 240V 50 / 60 Hz USA plug
Stage: Two
Motor Size (HP) RPM @ 50 / 60 Hz: 1 / 3 (HP) 1440 / 1720 RPM
Dimensions: 12.2″ x 5″ x 9.6″
Weight: 17.7 lb / 8.0 kg
Operating Temperature Range: 0 °C (32 °F) to 52 °C (125 °F)
Ultimate Vacuum: as low as 10 mirons
Oil Capacity: 11.5 oz / 330 ml
Overload Protection: Motor thermally protected, dual voltage units have extra IEC fuse
Control System: On-off power switch
Free Air Displacement: 2 CFM @ 60 Hz, 48 l / m @ 50 Hz
Intake Fittings: 1 / 4″ SAE, 3 / 8″ SAE and 1 / 2″ ACME
