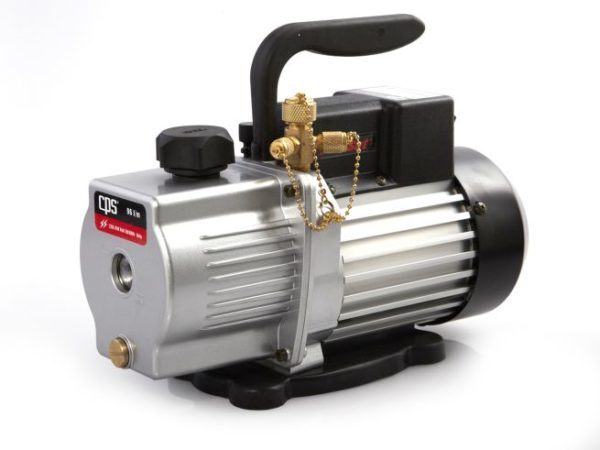

VP4DE – Pro-Set® 4 CFM Vacuum Pump

362,36

The VP4DE Pro-Set® vacuum pump is a 4 CFM, 2 stage unit with a versatile dual voltage 1/2HP motor. The VP4DE unit boasts the same high quality, high value features engineered into all of our Pro-Set® Premium Series vacuum pumps providing performance excellence and years of reliable service.

VP4DE Key Features:

  • Dual voltage operation 220-240V 50/60Hz
  • Exceptional ultimate vacuum rating as low as 10 microns
  • Advanced air cooled motor design for operation in high ambient temperatures
  • Proprietary oil mist free exhaust port cap for clean,
    safe job environment
  • Gas ballast valve speeds achievement of deep vacuum
  • Multiple port connections for ¼”, ⅜” and ½” ACME
  • Easy maintenance with large oil sight glass and fill port with easily accessible oil drain port.
  • Solid rubber base provides extreme shock resistance
  • Sure-grip handle ergonomically designed for superior comfort and portability

Download manual

Categories: , , Brand:

Description

Specifications:

Stage: 2
Motor Size (HP) RPM @ 50/60Hz: 1/2 (HP)2880/3440
Dimensions (Inches): 13.1 x 5.5 x 10
Weight: 22.1 lb / 10.0 kg
Operating Temperature Range: 0˚C (32˚F) to 52˚C (125˚F)
Power Source: 220-240V 50/60Hz
Ultimate Vacuum: as low as 10 Microns
Oil Capacity: 15.5 oz / 450 ml
Construction: Heavy Gauge Aluminum Chasis with hard rubber base and rubber lined steel handle
Overload Protection: Motor Thermally Protected, Dual Voltage units have extra IEC fuse
Control System: ON-OFF power switch
Free Air Displacement: 4 CFM @ 60Hz, 96l/m @ 50Hz
Intake Fittings: ¼” SAE, ⅜” SAE, and ½”ACME
Gas Ballast Valve: Yes
